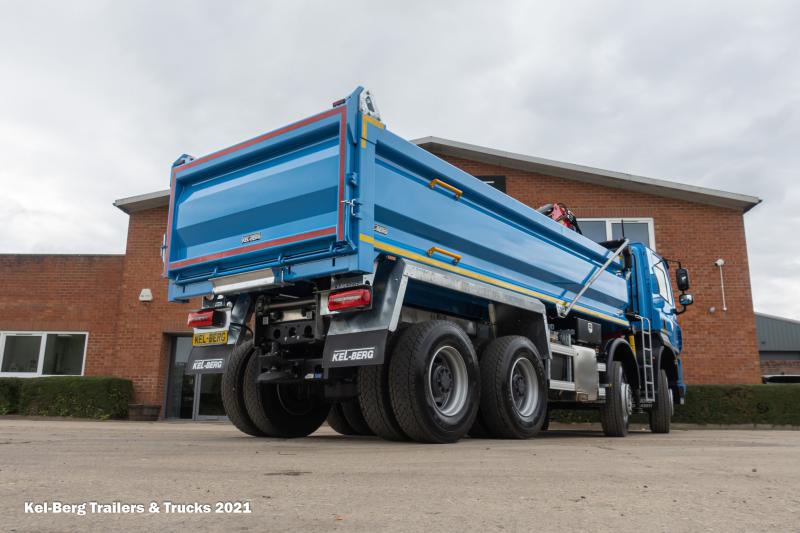

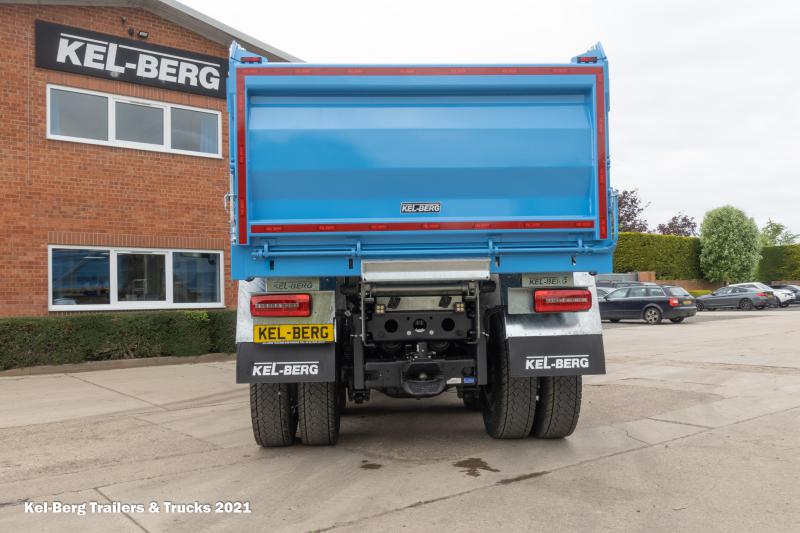

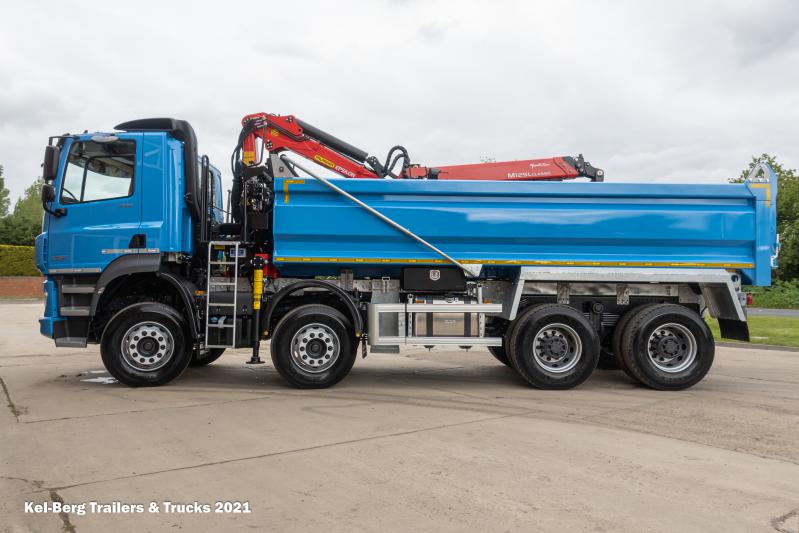

New DAF FAD CF480 8x4 Day Cab drawbar spec Kel-Berg Grab Loader

• 340 litre Aluminium fuel tank.

• 12 speed TraXon Automatic Gearbox.

• Double driven tandem axles type HR1670T with HUB REDUCTION.

• Air suspended drivers seat.

• Air con & sun visor.

• Daytime running lights with four LED's at each side, integrated in the head light units.

• Dual stand up controls.

• Kinshofer 500L bucket.

• Edbro TS26 tipping gear.

• Optional extras; beacon bar, reversing camers, sheeting system.



  • New
  • In Stock
  • New & Unregistered
  • Available in your livery
  • Various finance packages options
  • Service & R&M packages available
Download spec sheet Enquire Now
Make / Model

DAF CF480 FAD 8x4 rigid construction

Wheelbase:

5700 mm. rear overhang 1.65m

Engine Size & Output:

Engine MX-13, multi torque 6 cylinder diesel engine, 12.9 litres. Output 355 kW (483 hp) at 1600 rpm.

Maximum torque 2500 Nm at 900-1125 rpm.

Gearbox:

Automated gearbox, TraXon, 12 speeds

Automated gearbox software optimised for off-road applications. Selection switch on the dashboard for on-road or off-road driving.

Automated overdrive gearbox TraXon 12TX2610, ratio 12.92-0.77, 12 speeds

Chassis Details:

Aluminium fuel tank 340 litres, height 620 mm.
Wheelbase 5.70 m / rear overhang 1.65 m.
Horizontal exhaust discharge at the side of the DPF/SCR unit via a low exhaust diffuser.
DPF and SCR unit positioned behind second front axle at the right-hand side of the chassis.
Fuel tank at the left-hand side of the chassis.
AdBlue tank 45 litres at the left-hand side of the chassis.
Horizontal battery box at the left-hand side. No spare wheel carrier.
Side member height 310 mm, thickness 6.0 mm. Full length inner reinforcement.
Standard location of chassis components.
Air tanks steel.
Temporary rear light brackets.
Rear light unit with bulbs..

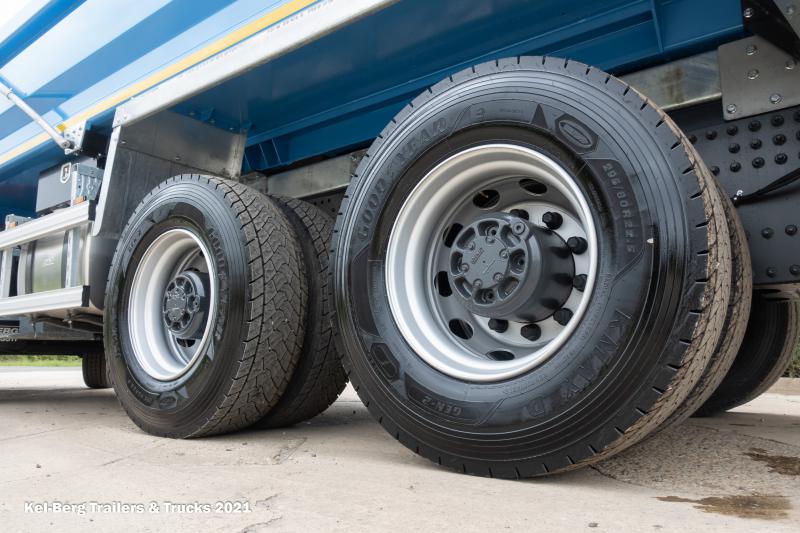

Wheels & Tyres:

Front 1 tyres    F1 295/80 R22.5GO  Goodyear MSS2   152/148 K Steering DB71-2
Front 2 tyres    F2 295/80 R22.5GO  Goodyear MSS2   152/148 K Steering DB71-2
Rear 1 tyres    R1 295/80 R22.5GO  Goodyear MSD2   152/148 K Traction EB73-2
Rear 2 tyres    R2 295/80 R22.5GO  Goodyear MSD2   152/148 K Traction EB73-2

Wheel Size 22.5 x 8.25 All round

Brake System:

MX Engine Brake. Hydraulically operated compression brake assembly integrated in the valve rocker group. The MX Engine Brake works simultaneously with the exhaust brake, resulting in a high combined braking power available at low engine rpm.
Park brake control with test position.
Spring brake cylinder on rear axle 2.
Ventilated disc brakes at front, rear tandem axle with drum brakes. Dual circuit air system with electronic control (EBS). Twin cylinder air compressor with heated dryer and economy mode.

Axles & Suspension:

Two front axles, type 167N. Vertical offset 20 mm. Parabolic leaf suspension with shock absorbers and stabiliser. Max. load 2x 7.5 tonnes.
Rear trapezium leaf suspension. Double driven tandem axles type HR1670T with HUB REDUCTION. Max. load 2x 10.5 tonnes. Mechanical cross-axle and inter-axle differential locks.
Rear spring load max. 21.0 t, brake system design load 21.0 t.

Cab Exterior:

Translucent external sun visor above the windscreen, colour green.
Bumper mounted light units with combined fog light and cornering light function.
Double glazed window in the cab rear wall.
Day Cab with galvanised steel bumper, tinted glass and electric window openers. Main mirrors and wide angle mirrors electrically heated. Cab width 2300 mm.
Maintenance free 4-point mechanical cab suspension with integrated shock absorbers.
Robust first cab entrance step with EPDM rubber surround with anti-slip tread.
Bi-reflector halogen head lights with impact-resistant Lexan lens. Head light levelling device.
Head light beam for left-hand traffic.
Daytime running lights with four LED's at each side, integrated in the head light units.
Electrical adjustment of the main mirrors and the wide angle mirrors.
Front view mirror to comply with EC directive 2003/97/EC for frontal field of view.
Central door lock system with exterior light check function. Includes 2 remote control units with integrated snake blade key with flip mechanism.
Telescopic windscreen wiper and ice scraper for easy cleaning of the windscreen and the side windows.

Cab Interior:

Cab climate control automatically controls cab temperature, blower, air distribution and air conditioning.
Right-hand drive.
Steering wheel black, soft grip finish in black colour.
Cab interior trim colour Dark Sand.
Cab interior decoration Black Rock.
Cab wallcovering PVC vinyl.
Air suspended driver seat - Comfort Air. High backed seat. Upholstery Flash Copper for the seat facing, Thunder for the borders and Rustico for the edges.
High backed basic, fixed co-driver seat. Upholstery Flash Copper for the seat facing, Thunder for the borders and Rustico for the edges.
Seat belts black.
Storage box on the engine tunnel.
Aluminium roof hatch with manual control.
Pollen filter with activated carbon to eliminate traffic and engine blow-by gasses and odours. Effectiveness 85% for particles up to 0.5 micron and 98% for particles up to 10 micron.
Electric window openers.
Accessory power supply to the roof console 12V/20A and 2x 24V/15A.
Converter 24V to 12V, 20A, 240W.

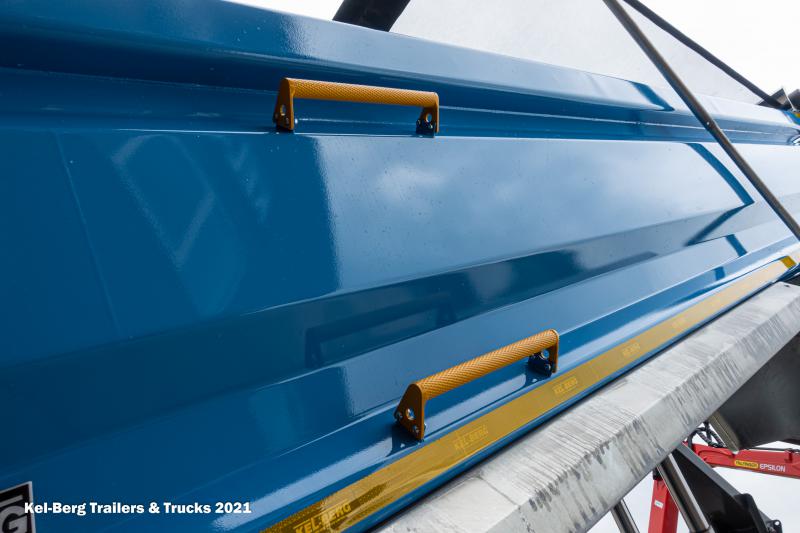

Body Details:

The body is constructed out of durable and hard wearing pressed and folded Hardox 450, suitable for carrying muck-away, demolition rubble materials and aggregate. The sides are fixed and pressed from 4 mm Hardox along with the heavy duty top rails which are folded and also from Hardox this gives the body exceptional strength, the floor is a single 5 mm Hardox sheet with angled edges which meet the side walls to avoid a 90 degree angle which material can stick too. The bulkhead and top swung tailgate are also single skin pressed Hardox material. The mud wings, rear valances and heavy duty back light brackets are galvanised and bolted on so can be easily changed if damaged, truck manufacturer rear.

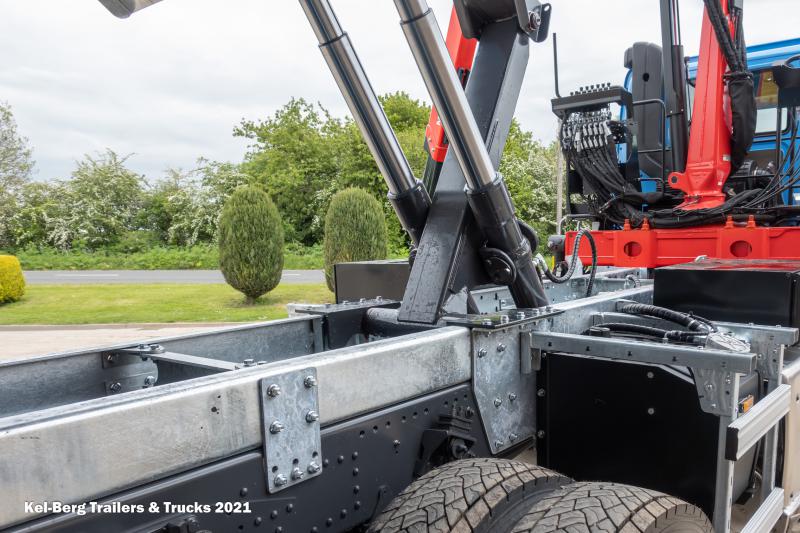

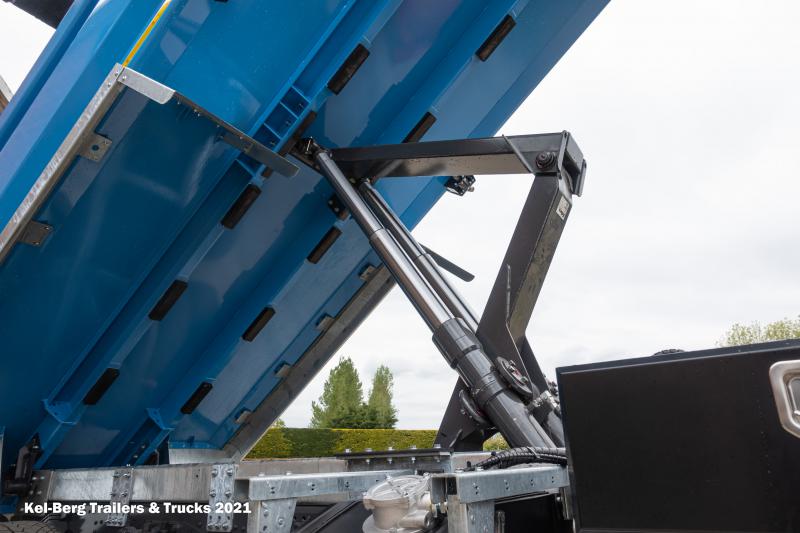

Tipping Gear:

EDBRO TS series. The high tensile steel stabilising frame within the TS effectively absorbs side loads imposed by the chassis during tipping whilst protecting the cylinders from side load. With 50% more torsional stiffness than comparable units, the TS provides ultimate stability for the safest tipping in even the most demanding operating conditions.

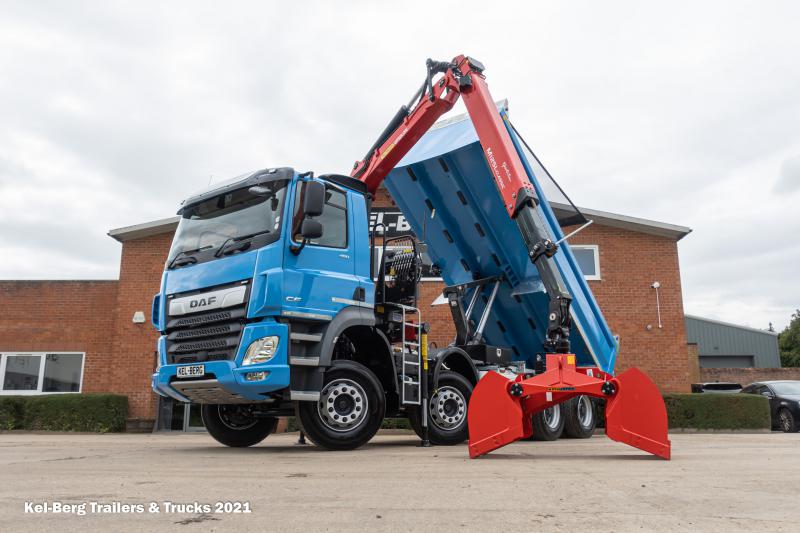

Crane Details:

Palfinger Epsilon M125 LC82 crane. Dual stand up controls with cable controls on drivers side. Double access catwalk and platform finished in black. Double boom extension with BK057 4.5t rotator, Kinshoffer KM602 500L clam bucket with lifting hooks, two fixed stabiliser legs, ground controls fitted to the off side. Main cylinder protection guard, rubber bump strip on outer boom. 2 spot lights, emergency stop & load hold valves on the main cylinder. Rated capacity indicator with LED for 50% 75% and 100%. Invisible safety case around the operator’s position. The crane is finished in KTL primer and painted in RAL 3020 red powder coating.

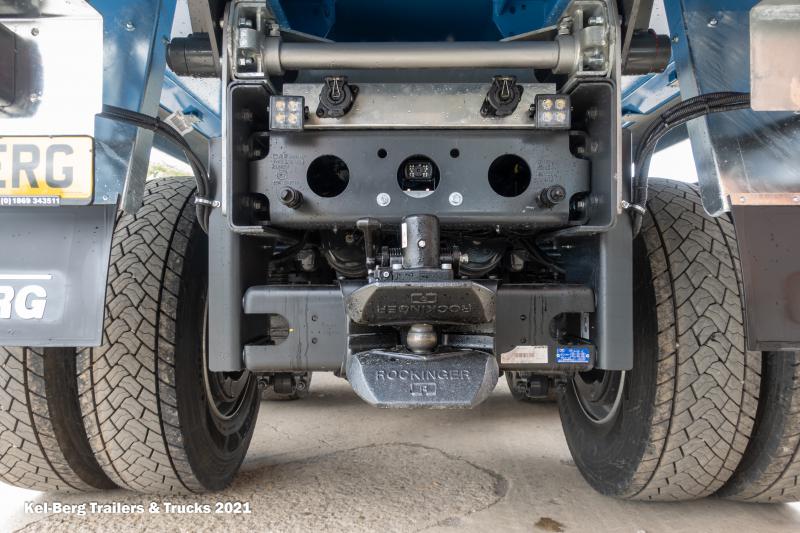

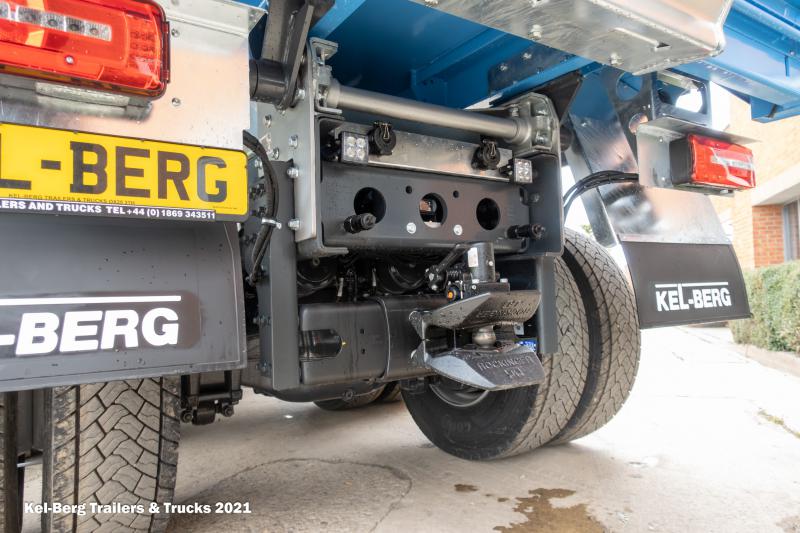

Drawbar & Trailer Equipment:

Pneumatic trailer connection with C-type couplings.
Type plate related drawbar application, up to the maximum allowable GCM.
Drawbar cross member. D-value 137 kN, Dc-value 92 kN, V-value 40 kN.
Electric trailer connection 24V with 15-pin socket.

Communication & Driving Management:

Speed limiter setting for cruise control/accelerator pedal: 90 km/h.
Radio/USB player. Speaker system with 2 speakers.
TruckPhone. Handsfree telephone kit with SIM card slot, Bluetooth antenna and two USB charging points. Multipoint-Pairing enables simultaneous operation of two additional mobile phones from the steering wheel.
Universal FMS connector.
Tachograph digital, Stoneridge.
Speedometer with main scale in m/h and secondary scale in km/h.
Standard antennas: AM/FM, GSM and GPS. Second GSM antenna for telephone.
Cruise control. Includes Mild Cruise Control function to resume a set vehicle speed in the most fuel efficient way.
Driver Performance Assistant (DPA). Interactive programme to support the driver in achieving the most cost effective driving style. The DPA information is shown on the 5 inch full colour TFT display in the instrument panel.

  • Roof mounted beacon bar (choice of bulb or LED)
  • F&R amber LED strobe lights
  • Reversing cameras
  • Brigade 4 way camera system c/w 1 terabyte HD & GPS location trace
  • Cycle side scan system with audible left turn warning announcement
  • Under body steel tool box
  • Chapter 8 graphics
  • Sheeting systems (side to side or flip front to back)
  • Weighing systems (In cab or chassis mounted display)
  • Air operated auto rear door
  • Plus many more…..

Chassis cab: Warranty Plus 2 Year Vehicle & 3 Year Driveline - takes care of all warrantable repairs on the vehicle for two years and on the driveline for a third year together with associated breakdown coverage.
